Part 3: Headland generator

Agricultural vehicles need space to turn between swaths. This area is called a headland. In Fields2Cover, the headland generator will take a F2CCells and the width of the headland as input, and it will return another `F2CCells` of the same field without the headlands.

Lets create a random field with 5 sides and 1e4 meters squared of area, and a robot with 2 meters of width.

• C++
• Python

f2c::Random rand(42);
F2CField field = rand.generateRandField(1e4, 5);
F2CCells cells = field.getField();
F2CRobot robot (2.0, 26.0);

rand = f2c.Random(42);
field = rand.generateRandField(1e4, 5);
cells = field.getField();
robot = f2c.Robot(2.0, 26.0);

Constant width headland

This class creates a constant headland around the field.

• C++
• Python

f2c::hg::ConstHL const_hl;
F2CCells no_hl = const_hl.generateHeadlands(cells, 3.0 * robot.getWidth());
std::cout << "The complete area is " << cells.area() <<
    ", and the area without headlands is " << no_hl.area() << std::endl;

const_hl = f2c.HG_Const_gen();
no_hl = const_hl.generateHeadlands(cells, 3.0 * robot.getWidth());
print("The complete area is ", cells.area(),
    ", and the area without headlands is ", no_hl.area());

The complete area is 10000, and the area without headlands is 7676.63

In blue it is cells and in orange it is no_hl

Required width headland

A border the swaths run along is only entered, while a border they end on takes a whole turn. This class asks each border how much room the robot needs on it, given the angle of the swaths, and leaves the rest to the mainland. It takes the robot and one track angle per cell instead of a width.

• C++
• Python

robot.setMinTurningRadius(8.0);
f2c::hg::ReqHL req_hl;
F2CCells req_no_hl = req_hl.generateHeadlands(cells, robot, {0.0});
F2CCells const_no_hl = const_hl.generateHeadlands(cells, robot, {0.0});
std::cout << "With swaths at 0 rad, the area without headlands is " <<
    req_no_hl.area() << ", while a constant headland leaves " <<
    const_no_hl.area() << std::endl;

robot.setMinTurningRadius(8.0);
req_hl = f2c.HG_Req_gen();
req_no_hl = req_hl.generateHeadlands(cells, robot, f2c.VectorDouble([0.0]));
const_no_hl = const_hl.generateHeadlands(cells, robot, f2c.VectorDouble([0.0]));
print("With swaths at 0 rad, the area without headlands is ", req_no_hl.area(),
    ", while a constant headland leaves ", const_no_hl.area());

With swaths at 0 rad, the area without headlands is 4958.6, while a constant headland leaves 4261.26

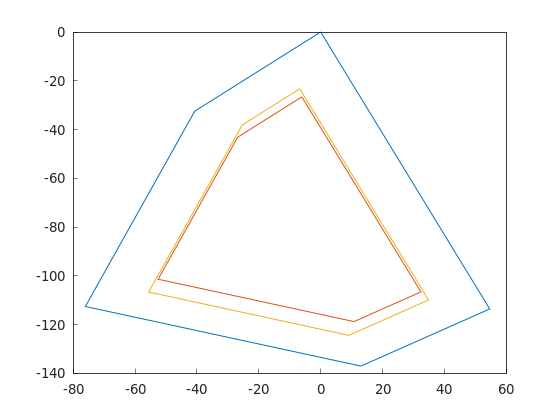

In blue it is cells, in orange const_no_hl and in yellow req_no_hl. The borders the swaths end on keep the whole headland, so both mainlands meet there, while the borders they run along give theirs back.

Corridor headland

A non-convex field is usually decomposed into simpler cells before planning a route, and that decomposition adds a new, artificial border wherever two cells meet. Widening that border with another ConstHL pass shrinks both cells, even though only one machine ever needs to turn there. CorridorHL opens a single corridor along that border instead, splitting it between the two cells with a CorridorShareMode: ASYMMETRIC (the default) takes the whole corridor out of whichever cell can spare it, and SYMMETRIC always splits it evenly.

Lets use an L-shaped field, decomposed at the reflex corner into a tall and a wide cell, and plan a route on each version of the mainland to see the difference in practice.

• C++
• Python

F2CCells l_cells(F2CCell(F2CLinearRing({
      F2CPoint(  0,  0), F2CPoint( 90,  0), F2CPoint( 90, 20),
      F2CPoint( 20, 20), F2CPoint( 20, 90), F2CPoint(  0, 90),
      F2CPoint(  0,  0)})));
const double hl_width = robot.getWidth();
const double r_w = robot.getCovWidth();

F2CCells single_no_hl = const_hl.generateHeadlands(l_cells, hl_width);
f2c::decomp::TrapezoidalDecomp decomp;
decomp.setSplitAngle(0.5*M_PI);
F2CCells decomp_cells = decomp.decompose(single_no_hl);

f2c::sg::BruteForce bf;
f2c::obj::NSwathModified obj;
f2c::rp::RoutePlannerBase route_planner;
f2c::hg::CorridorHL corridor_hl;
robot.setMinTurningRadius(2.0);
f2c::pp::PathPlanning path_planner;
f2c::pp::DubinsCurvesCC turn;

l_cells = f2c.Cells(f2c.Cell(f2c.LinearRing(f2c.VectorPoint([
        f2c.Point(  0,  0), f2c.Point( 90,  0), f2c.Point( 90, 20),
        f2c.Point( 20, 20), f2c.Point( 20, 90), f2c.Point(  0, 90),
        f2c.Point(  0,  0)]))));
hl_width = robot.getWidth();
r_w = robot.getCovWidth();

single_no_hl = const_hl.generateHeadlands(l_cells, hl_width);
decomp = f2c.DECOMP_TrapezoidalDecomp();
decomp.setSplitAngle(0.5*math.pi);
decomp_cells = decomp.decompose(single_no_hl);

bf = f2c.SG_BruteForce();
obj = f2c.OBJ_NSwathModified();
route_planner = f2c.RP_RoutePlannerBase();
corridor_hl = f2c.HG_Corridor_gen();
robot.setMinTurningRadius(2.0);
path_planner = f2c.PP_PathPlanning();
turn = f2c.PP_DubinsCurvesCC();

Headland every border again, the way a route planner would if it treated the new internal border like any other, and both cells lose a headland along it:

• C++
• Python

F2CCells double_no_hl = const_hl.generateHeadlands(decomp_cells, hl_width);
F2CSwathsByCells double_swaths = bf.generateBestSwaths(obj, r_w, double_no_hl);
F2CRoute double_route = route_planner.genRoute(single_no_hl, double_swaths);
F2CPath double_path = path_planner.planPath(robot, double_route, turn);
std::cout << "Double headland leaves " << double_no_hl.area() << std::endl;

double_no_hl = const_hl.generateHeadlands(decomp_cells, hl_width);
double_swaths = bf.generateBestSwaths(obj, r_w, double_no_hl);
double_route = route_planner.genRoute(single_no_hl, double_swaths);
double_path = path_planner.planPath(robot, double_route, turn);
print("Double headland leaves ", double_no_hl.area());

Double headland leaves 1776

In blue it is l_cells, in orange double_no_hl and the path shows where each swath is and how the robot turns between them. Both the tall and the wide cell gave up a headland along the border between them, so the area shrank far more than the outer headland alone would explain.

Hand the same internal border to CorridorHL instead, in its default ASYMMETRIC mode:

• C++
• Python

corridor_hl.setShareMode(f2c::hg::CorridorShareMode::ASYMMETRIC);
F2CCells corridor_no_hl = corridor_hl.generateHeadlands(decomp_cells, hl_width);
F2CSwathsByCells corridor_swaths =
  bf.generateBestSwaths(obj, r_w, corridor_no_hl);
F2CRoute corridor_route = route_planner.genRoute(single_no_hl, corridor_swaths);
F2CPath corridor_path = path_planner.planPath(robot, corridor_route, turn);
std::cout << "Asymmetric corridor leaves " << corridor_no_hl.area() <<
    std::endl;
for (auto&& share : corridor_hl.corridorShares(decomp_cells)) {
  std::cout << "Cell " << share.cell_i << " gives " << share.share
    << " of the corridor over " << share.shared_length
    << " m of border with cell " << share.cell_k << std::endl;
}

corridor_hl.setShareMode(f2c.CorridorShareMode_ASYMMETRIC);
corridor_no_hl = corridor_hl.generateHeadlands(decomp_cells, hl_width);
corridor_swaths = bf.generateBestSwaths(obj, r_w, corridor_no_hl);
corridor_route = route_planner.genRoute(single_no_hl, corridor_swaths);
corridor_path = path_planner.planPath(robot, corridor_route, turn);
print("Asymmetric corridor leaves ", corridor_no_hl.area());
for share in corridor_hl.corridorShares(decomp_cells):
  print("Cell", share.cell_i, "gives", share.share,
    "of the corridor over", share.shared_length,
    "m of border with cell", share.cell_k);

Asymmetric corridor leaves 2464

Cell 0 gives 1.0 of the corridor over 16.0 m of border with cell 1

Cell 1 gives 0.0 of the corridor over 16.0 m of border with cell 0

In blue it is l_cells and in orange corridor_no_hl. Cell 0, the wide cell, gives up the whole corridor; cell 1, the tall one, keeps its full width up to the border. corridor_no_hl ends up close to single_no_hl again, instead of the much smaller double_no_hl, because the border only had to give up its headland once, not twice.

Switch to SYMMETRIC mode and both cells split the same corridor evenly instead:

• C++
• Python

corridor_hl.setShareMode(f2c::hg::CorridorShareMode::SYMMETRIC);
F2CCells shared_no_hl = corridor_hl.generateHeadlands(decomp_cells, hl_width);
F2CSwathsByCells shared_swaths = bf.generateBestSwaths(obj, r_w, shared_no_hl);
F2CRoute shared_route = route_planner.genRoute(single_no_hl, shared_swaths);
F2CPath shared_path = path_planner.planPath(robot, shared_route, turn);
std::cout << "Symmetric shared corridor leaves " << shared_no_hl.area() <<
    std::endl;

corridor_hl.setShareMode(f2c.CorridorShareMode_SYMMETRIC);
shared_no_hl = corridor_hl.generateHeadlands(decomp_cells, hl_width);
shared_swaths = bf.generateBestSwaths(obj, r_w, shared_no_hl);
shared_route = route_planner.genRoute(single_no_hl, shared_swaths);
shared_path = path_planner.planPath(robot, shared_route, turn);
print("Symmetric shared corridor leaves ", shared_no_hl.area());

Symmetric shared corridor leaves 2464

In blue it is l_cells and in orange shared_no_hl. The total area lost is exactly the same as with ASYMMETRIC, since the corridor is the same width either way; only which cell it comes from changes. Here both the tall and the wide cell give up half the corridor, so the wide cell shrinks a little on this border instead of the tall cell shrinking a lot.
